Tire Service Equipment 🚗

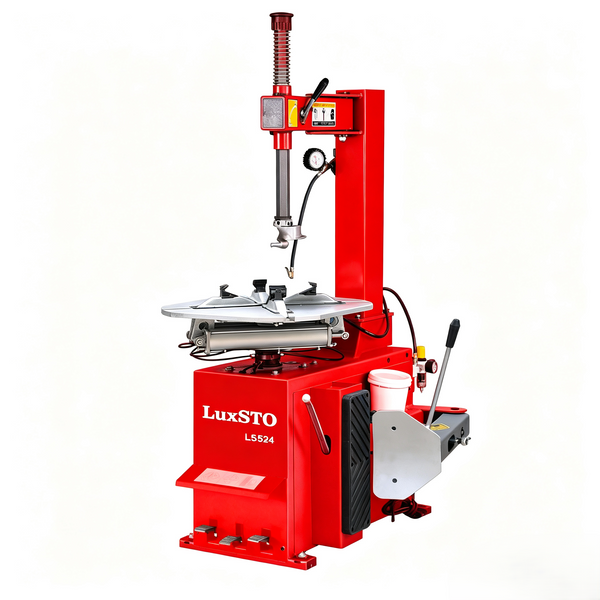

Semi-Automatic Tire Changer LuxSTO LS524
Purpose & Applications
LuxSTO LS524 is a high-performance semi-automatic tire changer engineered for efficient, accurate, and safe mounting and demounting of tires on passenger cars, SUVs, and light commercial vehicles. Featuring reinforced structural elements, durable materials, and ergonomic controls, it serves as an excellent choice for auto repair shops and tire service centers with high workflow demands.
Features & Advantages
- Step Brake Pedal Function: Enables precise tire mounting while saving operation time.
- Wear-Resistant Mounting Head: Crafted from special steel, making it wear-resistant, unbendable, and unbreakable.
- Durable Clamping Claws: Clamps are manufactured from special alloy material ensuring strong, long-lasting performance.
- Removable Pedal Cover: Front pedal cover is easily removable, ensuring convenient maintenance and serviceability.
- Silver Contact Switch (40A): Universal switch features pure silver contact points to handle heavy power loads and prolong operating life.
- Protective Covers (Optional): Claws, crowbar, demounting head, and bead breaker shoe can be optionally fitted with protective covers to prevent rim damage.
Technical Specifications
| Outer Clamping Wheel Rim: | 11" – 20" |
| Inner Supporting Wheel Rim: | 12" – 24" |
| Max. Wheel Diameter: | 960 mm |
| Wheel Width: | 3" – 12" |
| Operating Air Pressure: | 8 – 10 bar |
| Power Supply Voltage: | 220V / 380V |
| Motor Power: | 0.75 / 1.1 kW |
| Main Shaft Rotation Speed: | 7 rpm |
| Noise Level: | < 75 dB |
| Net Weight: | 179 kg |
| Gross Weight: | 207 kg |
| Machine Packing Size: | 980 × 760 × 950 mm |
| Total Volume: | 0.71 m³ |
| Container Loading: | 20'GP: 34 pcs / 40'HQ: 108 pcs |
