Tire Service Equipment 🚗

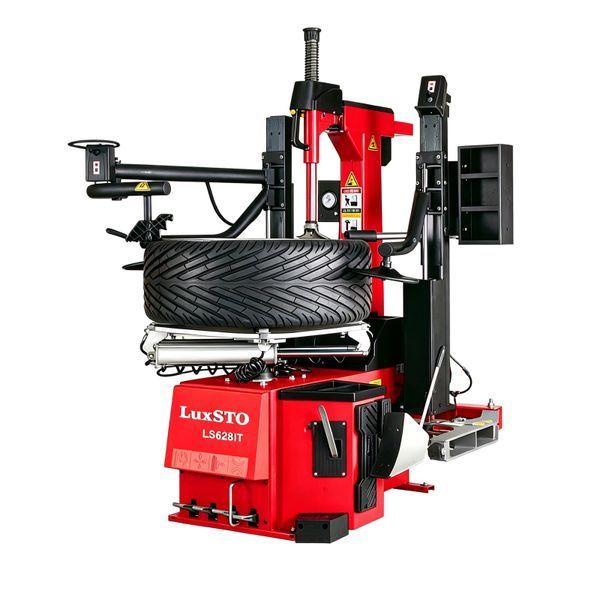

Automatic Tire Changer LuxSTO LS628IT
Application & Purpose
The LuxSTO LS628IT is a heavy-duty professional automatic tire changer equipped with an integrated tubeless inflation system (IT). Designed for servicing passenger cars, SUVs, crossovers, and light commercial vehicles, it easily handles large tires in high-demand workshops.
Key Advantages & Features
- Integrated Tubeless Inflation System (IT): Provides rapid bead seating for tubeless tires.
- Extended Clamping Capacity: Outside clamping range from 13" to 24", inside clamping range from 15" to 28".
- Large Wheel Handling: Suitable for wheels up to 1200 mm in diameter and 15" in width.
- Heavy-Duty Construction: Net weight of 500 kg ensures maximum rigidity and vibration-free operation when working with stiff sidewall tires.
Technical Specifications
| Rim Clamping From Outside: | 13" – 24" |
| Rim Clamping From Inside: | 15" – 28" |
| Max. Wheel Diameter: | 1200 mm |
| Wheel Width: | 3" – 15" |
| Operating Pressure: | 8 – 10 bar |
| Motor Power: | 0.75 / 1.1 kW |
| Noise Level: | < 75 dB |
| Net / Gross Weight: | 500 kg / 553 kg |
| Packing Dimension: | 1440 × 1140 × 1830 mm |
| Container Loading: | 20'GP: 8 pcs / 40'GP: 16 pcs |
