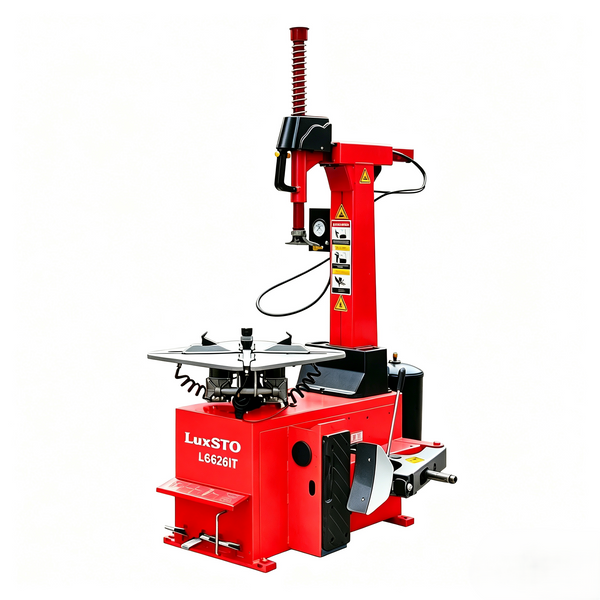

LuxSTO LS626IT Automatic Tire Changer

Purpose & Applications

LuxSTO LS626IT is a professional automatic tire changer equipped with a pneumatic tilting column and an integrated tubeless tire blast inflation system (Inflation Technology). Designed for high-volume tire repair shops and service centers, it easily handles passenger cars, SUVs, crossovers, and light commercial vehicles, including stiff sidewall and low-profile Run-Flat tires.

Features & Advantages

• Integrated Tubeless Inflation System (IT): Delivers a powerful blast of air through the clamping jaws to seat the tire beads instantly.
• Automatic Pneumatic Control: Tilting column and locking mechanism are pneumatically controlled for faster and smoother operation.
• Extended Clamping Range: Internal turntable adjustment allows clamping wheel rims from 11" up to 26".
• Reinforced Shafts: Features a 41mm hex shaft and 50mm square shaft for high bend resistance when working with rigid tires.
• Increased Clamping Power: 80mm air cylinders increase clamping force for superior rim stability.
• Step-Move Control Pedal: Allows stopping clamps at any position for effortless and precise wheel alignment.
• Ergonomic Bead Breaker: Arc shovel design with 360° rotation and 2 adjustment positions for tires up to 15" wide.
• Heavy-Duty Mounting Head: Crafted from special wear-resistant steel that is unbendable and unbreakable under load.
• Easy Maintenance: Removable front pedal cover provides simple access for after-sales service and maintenance.

Technical Specifications
