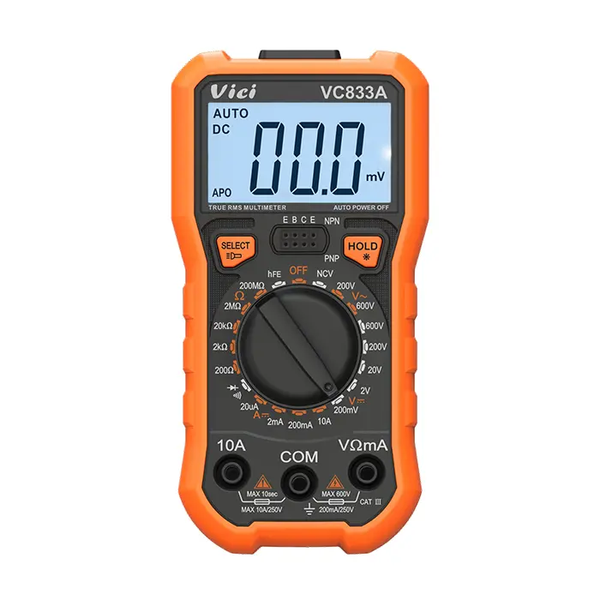

Digital multimeter Vici VC833A

Vici VC833A True RMS Digital Multimeter with Manual Ranging

The professional Vici VC833A digital multimeter is a high-speed, multi-functional diagnostic instrument featuring a 6000-count manual-ranging (Manual range) architecture. Highly favored by experienced technicians, manual switching ensures an instantaneous response from the processor without any auto-detect lag, making it perfect for rapid diagnostic sequences. Outfitted with advanced True RMS technology, heavy-duty chassis armoring, and an expanded test matrix, this multimeter is ideal for industrial machinery calibration, automotive electronics troubleshooting, and hardware development.

Design Features & Benefits:

• High-Speed Manual Ranging: Empowers the user to pre-select the optimal measurement threshold, completely eliminating auto-ranging cycle latency and significantly accelerating repetitive field tests.

• True RMS Conversion & Anti-Shock Protection: Delivers exceptional accuracy when tracking distorted or non-linear AC waveforms. The rugged housing features integrated defensive cladding (Protect & Anti-shock system) engineered to withstand rough workshop environments.

• Tri-Tier Built-In Safety Toolkit (NCV, Live Test, High Voltage Indication): Features a high-sensitivity NCV sensor for non-contact wall wire scanning, a dedicated "Live test" mode to map line/phase wires instantly, and a distinctive high-voltage alert to highlight hazardous live potentials.

• Advanced Engineering Metrics: Effortlessly handles high-capacity arrays up to 60mF, high-frequency signals up to 10MHz, and deep temperature logging ranging from -40°C to 1000°C via the included thermocouple probe.

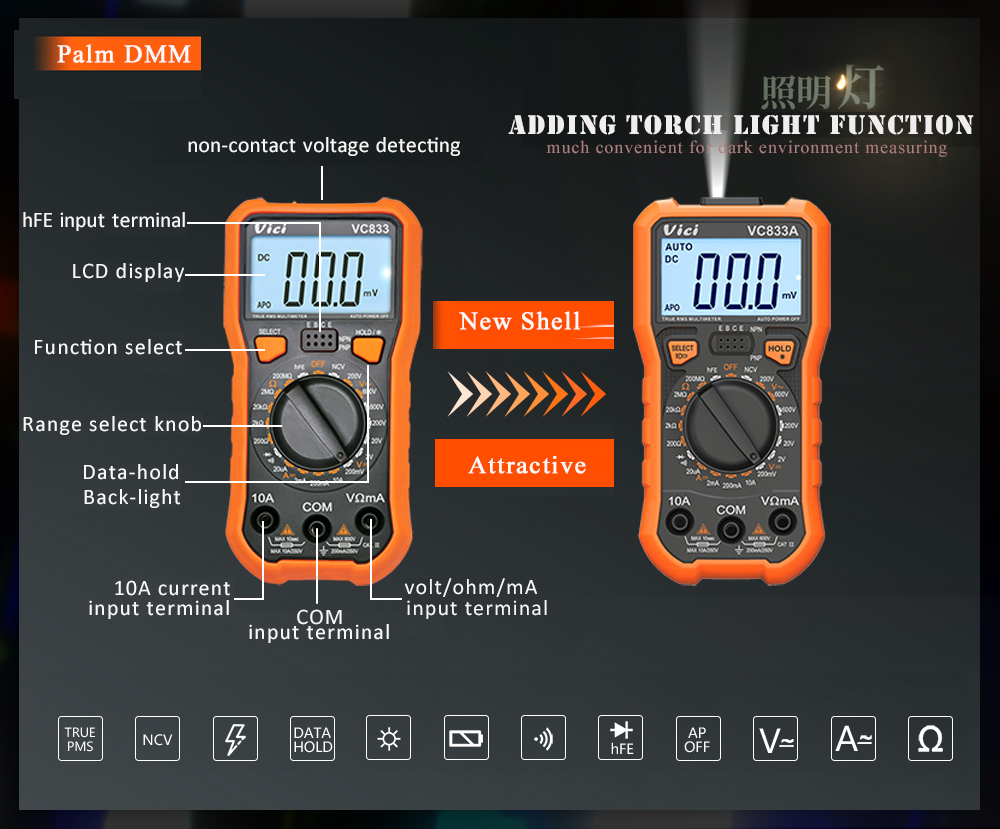

• Illuminated Workshop Layout: The large 65.0 mm × 43.5 mm LCD window is fully backlit for low-light conditions, paired with a heavy-duty built-in LED flashlight (Torch function) on the rear chassis for dark breakers and junction boxes.

Technical Specifications:

• Brand & Model: Vici VC833A

• Ranging System: Manual range selection

• Max Display Counts: 6000 counts

• Core Measurements: AC/DC Voltage (up to 1000V), AC/DC Current (up to 20A), Resistance (up to 60MΩ), Capacitance (up to 60mF), Frequency (up to 10MHz)

• Temperature Tracking Range: -40°C to 1000°C (-40°F to 1832°F)

• Specialized Hardware Modules: True RMS processing, Non-Contact Voltage (NCV), Line/Live wire test, High voltage safety prompt, Duty-cycle loop

• Utility Configurations: Display backlight, integrated Torch flashlight, Data hold lock, Diode junction mapping, Continuity alarm buzzer

• Power Supply: 3V (2 × 1.5V AA batteries)

• Safety Rating: CAT.III 600V

• LCD Size: 65.0 mm × 43.5 mm

• Auto Power Off: Approximately after 15 minutes of inactivity

Basic function

Special Function
