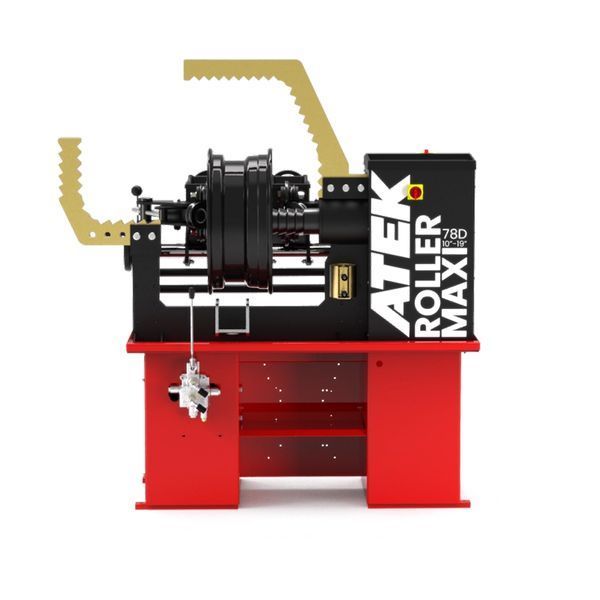

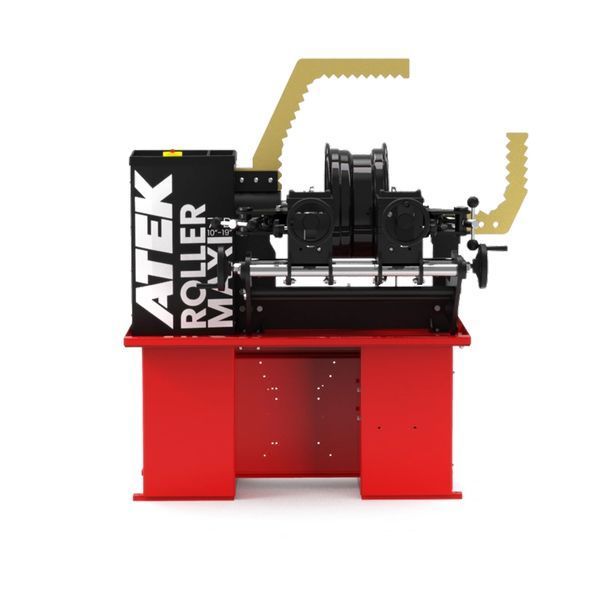

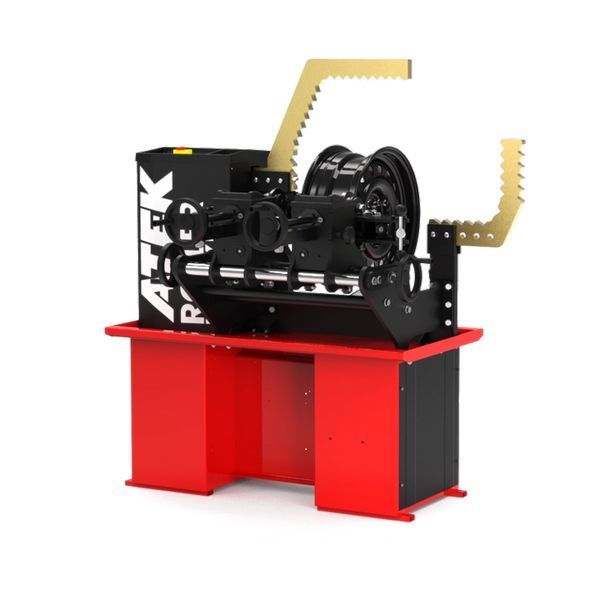

Universal disc straightening stand ATEK MAKINA ROLLER MAXI 78D 00
Description:
ATEK MAKINA ROLLER MAXI 78D 00 is a universal disc straightening stand suitable for working with both steel and alloy discs. Thanks to the combination of a hydraulic press and double-sided roller rolling, it provides maximum efficiency and accuracy when restoring the geometry of the discs.
Alloy discs are straightened using a hydraulic cylinder that operates in a sturdy U-shaped frame with additional stops. Steel discs are straightened using a double-sided rolling method, which allows for an even distribution of forces and minimizes damage.
Key features:
✔ Combined disc straightening system - hydraulic press for cast discs, rollers for steel ones.
✔ Double-sided rolling - simultaneous straightening of the outer and inner sides of the rim.
✔ Hydraulic piston with adjustable pressure force – for precise straightening of any deformations.
✔ Control of disc geometry – using a measuring probe with a variable mounting system.
✔ Gear motor – ensures stable operation and durability of the equipment.
✔ High-quality rollers – made of alloy steel and heat-treated to increase the resource.
✔ Robust design – allows you to work without preheating the discs.
Equipment:
🔹 Magnetic measuring probe
🔹 10 piston adapters
🔹 12 centering washers
🔹 Wheel edge straightening wrench
Technical specifications:
✔ Power supply: 3 phases, 400V, 50 Hz
✔ Hydraulic pump power: 0.55 kW
✔ Rotating motor power: 0.75 kW
✔ Wheel diameter: 10"-19"
✔ Hydraulic cylinder support: standard
Dimensions and weight:
📦 Dimensions: 1000 × 1480 × 1470 mm
⚖ Weight: 400 kg
ATEK MAKINA ROLLER MAXI 78D 00 is the ideal choice for professional car services and tire repair shops that seek a universal solution for straightening any type of wheels.
